Deploying a container from a private image requires registry credentials so CaaS can authenticate when pulling the image. Credentials store the registry URL, username, and password and can be reused across containers.
## Step 1. Create registry credentials

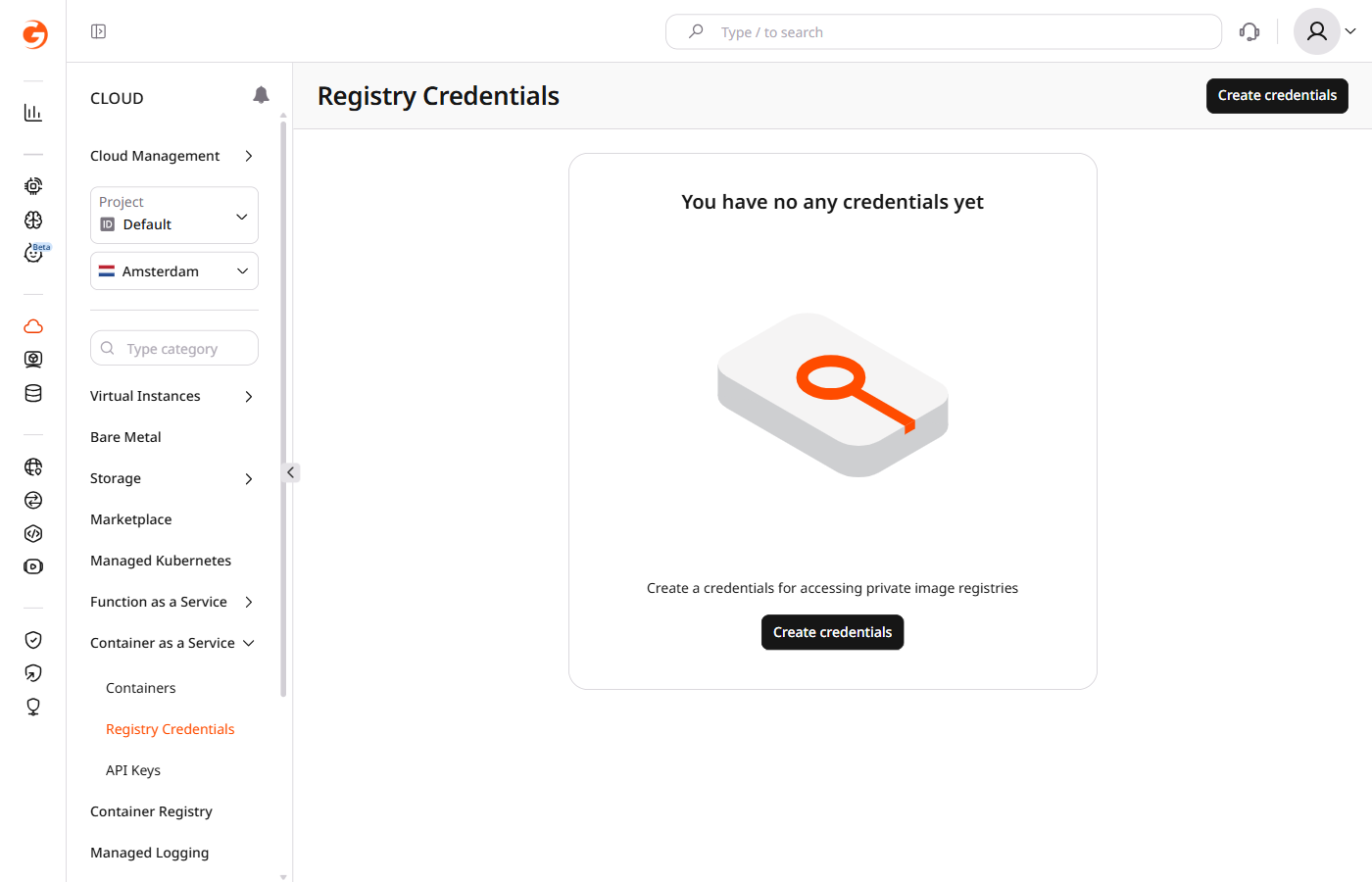

In the [Gcore Customer Portal](https://portal.gcore.com), navigate to **Cloud** > **Container as a Service** > **Registry Credentials** and click **Create credentials**.

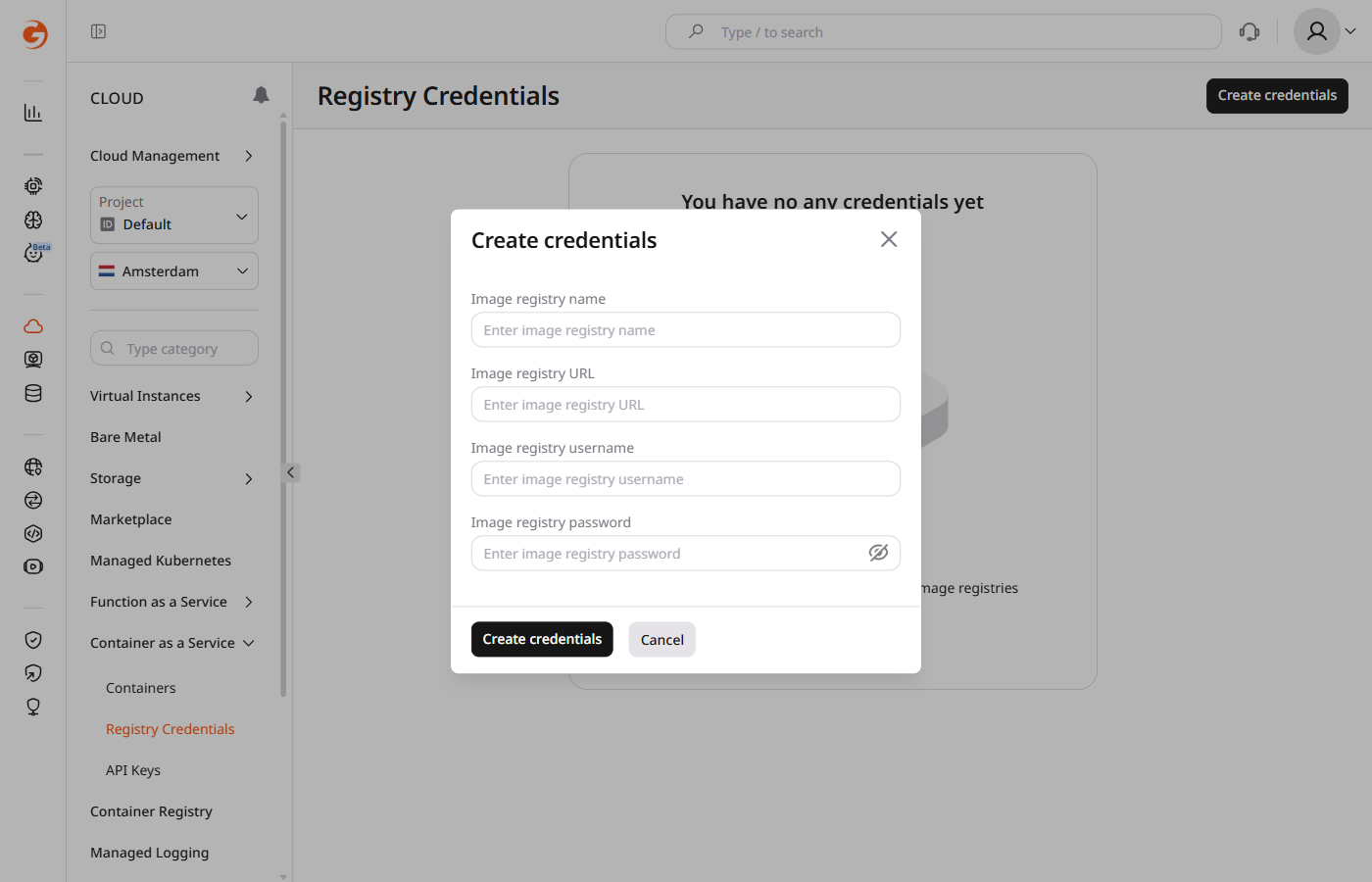

Fill in the dialog:
* **Image registry name** — a label that identifies this credential set in the **Credentials** dropdown when creating or editing containers.
* **Image registry URL** — the registry hostname, for example `registry.luxembourg-2.cloud.gcore.dev`.
* **Image registry username** — the username for authenticating with the registry.
* **Image registry password** — the password for the registry user.
Click **Create credentials** to save.
## Step 2. Create a container with registry credentials
When [creating a container](/cloud/caas/create-a-container), select **Private** as the image type in the **Container image** section, then select the credentials created in Step 1 from the **Credentials** dropdown.
The example below creates a Gcore [Container Registry](/cloud/container-registry/create-a-registry) and uses it as the private registry for a CaaS container. If a private registry already exists, skip Steps 1–3 and start from Step 4. Container Registry and CaaS must be in the same region — Luxembourg-2 supports both.
An [API token](/developer-tools/rest-api/authentication) is required, along with a [project ID](/api-reference/cloud/projects/list-projects) and a [region ID](/api-reference/cloud/regions/list-regions).
Set the following environment variables before running the examples:
```bash theme={null}
export GCORE_API_KEY="{YOUR_API_KEY}"
export GCORE_CLOUD_PROJECT_ID="{YOUR_PROJECT_ID}"
export GCORE_CLOUD_REGION_ID="{YOUR_REGION_ID}"
```
## Step 1. Create a Container Registry
A Container Registry stores the Docker image before CaaS pulls it.
| Parameter | Required | Description |
| --------------- | -------- | ------------------------------------------------------------------------------ |
| `name` | Yes | Registry name, lowercase letters and hyphens. Becomes part of the registry URL |
| `storage_limit` | No | Maximum storage in GiB. Defaults to 10 |
```python theme={null}
import os
import requests # pip install requests
API_KEY = os.environ["GCORE_API_KEY"]
PROJECT_ID = os.environ["GCORE_CLOUD_PROJECT_ID"]
REGION_ID = os.environ["GCORE_CLOUD_REGION_ID"]
HDR = {"Authorization": f"APIKey {API_KEY}"}
resp = requests.post(
f"https://api.gcore.com/cloud/v1/registries/{PROJECT_ID}/{REGION_ID}",
headers=HDR,
json={"name": "my-registry", "storage_limit": 10},
)
resp.raise_for_status()
registry = resp.json()
REGISTRY_ID = registry["id"]
REGISTRY_URL = registry["url"].rstrip("/")
print("Registry URL:", REGISTRY_URL)
```
```go theme={null}
package main
import (
"bytes"
"encoding/json"
"fmt"
"io"
"net/http"
"os"
"strings"
)
func main() {
apiKey := os.Getenv("GCORE_API_KEY")
projectID := os.Getenv("GCORE_CLOUD_PROJECT_ID")
regionID := os.Getenv("GCORE_CLOUD_REGION_ID")
client := &http.Client{}
payload, _ := json.Marshal(map[string]any{"name": "my-registry", "storage_limit": 10})
req, _ := http.NewRequest("POST",
fmt.Sprintf("https://api.gcore.com/cloud/v1/registries/%s/%s", projectID, regionID),
bytes.NewReader(payload))
req.Header.Set("Authorization", "APIKey "+apiKey)
req.Header.Set("Content-Type", "application/json")
resp, _ := client.Do(req)
body, _ := io.ReadAll(resp.Body)
resp.Body.Close()
var registry struct {
ID int `json:"id"`
URL string `json:"url"`
}
json.Unmarshal(body, ®istry)
registryID := registry.ID
registryURL := strings.TrimSuffix(registry.URL, "/")
fmt.Printf("Registry ID: %d, URL: %s\n", registryID, registryURL)
// Steps 2–5 continue inside this main() function
}
```
```bash theme={null}
curl -s -X POST "https://api.gcore.com/cloud/v1/registries/$GCORE_CLOUD_PROJECT_ID/$GCORE_CLOUD_REGION_ID" \
-H "Authorization: APIKey $GCORE_API_KEY" \
-H "Content-Type: application/json" \
-d '{"name": "my-registry", "storage_limit": 10}'
```
Response:
```json theme={null}
{
"id": 606,
"name": "my-registry",
"url": "registry.luxembourg-2.cloud.gcore.dev/1000503-1186668-76-my-registry/"
}
```
```bash theme={null}
export REGISTRY_ID="606"
export REGISTRY_URL="registry.luxembourg-2.cloud.gcore.dev/1000503-1186668-76-my-registry"
```
## Step 2. Create a registry user
A registry user provides Docker login credentials. The `secret` is returned only once — copy it immediately.
| Parameter | Required | Description |
| ---------- | -------- | ---------------------------------------------------------- |
| `name` | Yes | Username suffix, lowercase alphanumeric, max 16 characters |
| `duration` | Yes | Credential lifetime in days. Use `-1` for no expiration |
```python theme={null}
resp = requests.post(
f"https://api.gcore.com/cloud/v1/registries/{PROJECT_ID}/{REGION_ID}/{REGISTRY_ID}/users",
headers=HDR,
json={"name": "pusher", "duration": -1},
)
resp.raise_for_status()
user = resp.json()
DOCKER_USERNAME = user["name"]
DOCKER_PASSWORD = user["secret"]
print("Username:", DOCKER_USERNAME)
```
```go theme={null}
// Add inside main(), after Step 1
payload, _ = json.Marshal(map[string]any{"name": "pusher", "duration": -1})
req, _ = http.NewRequest("POST",
fmt.Sprintf("https://api.gcore.com/cloud/v1/registries/%s/%s/%d/users",
projectID, regionID, registryID),
bytes.NewReader(payload))
req.Header.Set("Authorization", "APIKey "+apiKey)
req.Header.Set("Content-Type", "application/json")
resp, _ = client.Do(req)
body, _ = io.ReadAll(resp.Body)
resp.Body.Close()
var regUser struct {
Name string `json:"name"`
Secret string `json:"secret"`
}
json.Unmarshal(body, ®User)
dockerUsername := regUser.Name
dockerPassword := regUser.Secret
fmt.Println("Username:", dockerUsername)
```
```bash theme={null}
curl -s -X POST \
"https://api.gcore.com/cloud/v1/registries/$GCORE_CLOUD_PROJECT_ID/$GCORE_CLOUD_REGION_ID/$REGISTRY_ID/users" \
-H "Authorization: APIKey $GCORE_API_KEY" \
-H "Content-Type: application/json" \
-d '{"name": "pusher", "duration": -1}'
```
Response:
```json theme={null}
{
"name": "r_1000503-1186668-76-my-registry+pusher",
"secret": "gVa7zL5meW9cBOJLGiQx9AcvPFSehcgg"
}
```
The `secret` field cannot be retrieved after this response. Save it immediately. If lost, delete the user and create a new one.
```bash theme={null}
export DOCKER_USERNAME="r_1000503-1186668-76-my-registry+pusher"
export DOCKER_PASSWORD="{secret_from_response}"
```
## Step 3. Push an image
Log in to the registry, tag a local image, and push it. Requires [Docker](https://docs.docker.com/get-started/get-docker/) installed locally.
```bash theme={null}
echo "$DOCKER_PASSWORD" | docker login "$REGISTRY_URL" \
--username "$DOCKER_USERNAME" --password-stdin
docker tag nginx:latest "$REGISTRY_URL/nginx:latest"
docker push "$REGISTRY_URL/nginx:latest"
```
## Step 4. Create a pull secret
A pull secret stores registry credentials inside the CaaS region, letting CaaS authenticate when pulling the private image.
| Parameter | Required | Description |
| ---------- | -------- | -------------------------------------------------------------------------------------------- |
| `name` | Yes | Secret identifier referenced in the container spec. Pattern `^[a-z][-a-z0-9]{0,24}[a-z0-9]$` |
| `registry` | Yes | Registry hostname without path |
| `login` | Yes | Full Docker username from Step 2 |
| `password` | Yes | Secret from Step 2 |
```python theme={null}
resp = requests.post(
f"https://api.gcore.com/cloud/v1/caas/secrets/{PROJECT_ID}/{REGION_ID}",
headers=HDR,
json={
"name": "my-registry-secret",
"registry": "registry.luxembourg-2.cloud.gcore.dev",
"login": DOCKER_USERNAME,
"password": DOCKER_PASSWORD,
},
)
resp.raise_for_status()
PULL_SECRET_NAME = resp.json()["name"]
print("Pull secret:", PULL_SECRET_NAME)
```
```go theme={null}
// Add inside main(), after Step 3
payload, _ = json.Marshal(map[string]any{
"name": "my-registry-secret",
"registry": "registry.luxembourg-2.cloud.gcore.dev",
"login": dockerUsername,
"password": dockerPassword,
})
req, _ = http.NewRequest("POST",
fmt.Sprintf("https://api.gcore.com/cloud/v1/caas/secrets/%s/%s", projectID, regionID),
bytes.NewReader(payload))
req.Header.Set("Authorization", "APIKey "+apiKey)
req.Header.Set("Content-Type", "application/json")
resp, _ = client.Do(req)
body, _ = io.ReadAll(resp.Body)
resp.Body.Close()
var secret struct{ Name string `json:"name"` }
json.Unmarshal(body, &secret)
pullSecretName := secret.Name
fmt.Println("Pull secret:", pullSecretName)
```
```bash theme={null}
curl -s -X POST "https://api.gcore.com/cloud/v1/caas/secrets/$GCORE_CLOUD_PROJECT_ID/$GCORE_CLOUD_REGION_ID" \
-H "Authorization: APIKey $GCORE_API_KEY" \
-H "Content-Type: application/json" \
-d "{
\"name\": \"my-registry-secret\",
\"registry\": \"registry.luxembourg-2.cloud.gcore.dev\",
\"login\": \"$DOCKER_USERNAME\",
\"password\": \"$DOCKER_PASSWORD\"
}"
```
Response:
```json theme={null}
{
"name": "my-registry-secret",
"registry": "registry.luxembourg-2.cloud.gcore.dev",
"login": "r_1000503-1186668-76-my-registry+pusher"
}
```
```bash theme={null}
export PULL_SECRET_NAME="my-registry-secret"
```
## Step 5. Create a container
Pass the pull secret name and the full private image path in the container spec. The `pull_secret` field references the name created in Step 4.
```python theme={null}
resp = requests.post(
f"https://api.gcore.com/cloud/v1/caas/{PROJECT_ID}/{REGION_ID}/containers",
headers=HDR,
json={
"name": "my-nginx",
"image": f"{REGISTRY_URL}/nginx:latest",
"listening_port": 80,
"flavor": "80mCPU-128MiB",
"scale": {"min": 1, "max": 2},
"pull_secret": PULL_SECRET_NAME,
},
)
resp.raise_for_status()
task_id = resp.json()["tasks"][0]
print("Task ID:", task_id)
```
```go theme={null}
// Add inside main(), after Step 4
payload, _ = json.Marshal(map[string]any{
"name": "my-nginx",
"image": registryURL + "/nginx:latest",
"listening_port": 80,
"flavor": "80mCPU-128MiB",
"scale": map[string]int{"min": 1, "max": 2},
"pull_secret": pullSecretName,
})
req, _ = http.NewRequest("POST",
fmt.Sprintf("https://api.gcore.com/cloud/v1/caas/%s/%s/containers", projectID, regionID),
bytes.NewReader(payload))
req.Header.Set("Authorization", "APIKey "+apiKey)
req.Header.Set("Content-Type", "application/json")
resp, _ = client.Do(req)
body, _ = io.ReadAll(resp.Body)
resp.Body.Close()
var taskResp struct{ Tasks []string `json:"tasks"` }
json.Unmarshal(body, &taskResp)
taskID := taskResp.Tasks[0]
fmt.Println("Task ID:", taskID)
```
```bash theme={null}
curl -s -X POST "https://api.gcore.com/cloud/v1/caas/$GCORE_CLOUD_PROJECT_ID/$GCORE_CLOUD_REGION_ID/containers" \
-H "Authorization: APIKey $GCORE_API_KEY" \
-H "Content-Type: application/json" \
-d "{
\"name\": \"my-nginx\",
\"image\": \"$REGISTRY_URL/nginx:latest\",
\"listening_port\": 80,
\"flavor\": \"80mCPU-128MiB\",
\"scale\": {\"min\": 1, \"max\": 2},
\"pull_secret\": \"$PULL_SECRET_NAME\"
}"
```
Response:
```json theme={null}
{
"tasks": ["bf1bbc44-3a20-4c90-bbb9-3781e208fd16"]
}
```
Poll GET /cloud/v1/tasks/{task_id} until `state` is `FINISHED`, then call GET /cloud/v1/caas/{project_id}/{region_id}/containers/my-nginx to retrieve the public endpoint. Both polling and endpoint retrieval are shown in [create a container](/cloud/caas/create-a-container).
## Clean up
Delete the resources in this order: container first, then the pull secret, then the registry user, then the registry itself.
```python theme={null}
# Delete container
resp = requests.delete(
f"https://api.gcore.com/cloud/v1/caas/{PROJECT_ID}/{REGION_ID}/containers/my-nginx",
headers=HDR,
)
resp.raise_for_status()
# Poll resp.json()["tasks"][0] until FINISHED (same as Step 5)
# Delete pull secret
requests.delete(
f"https://api.gcore.com/cloud/v1/caas/secrets/{PROJECT_ID}/{REGION_ID}/{PULL_SECRET_NAME}",
headers=HDR,
).raise_for_status()
# Delete registry user, then registry
requests.delete(
f"https://api.gcore.com/cloud/v1/registries/{PROJECT_ID}/{REGION_ID}/{REGISTRY_ID}/users/pusher",
headers=HDR,
).raise_for_status()
requests.delete(
f"https://api.gcore.com/cloud/v1/registries/{PROJECT_ID}/{REGION_ID}/{REGISTRY_ID}",
headers=HDR,
).raise_for_status()
```
```go theme={null}
// Add inside main(), after Step 5
// Delete container
req, _ = http.NewRequest("DELETE",
fmt.Sprintf("https://api.gcore.com/cloud/v1/caas/%s/%s/containers/my-nginx",
projectID, regionID),
nil)
req.Header.Set("Authorization", "APIKey "+apiKey)
client.Do(req)
// Poll the returned task ID until FINISHED (same as Step 5)
// Delete pull secret
req, _ = http.NewRequest("DELETE",
fmt.Sprintf("https://api.gcore.com/cloud/v1/caas/secrets/%s/%s/%s",
projectID, regionID, pullSecretName),
nil)
req.Header.Set("Authorization", "APIKey "+apiKey)
client.Do(req)
// Delete registry user, then registry
req, _ = http.NewRequest("DELETE",
fmt.Sprintf("https://api.gcore.com/cloud/v1/registries/%s/%s/%d/users/pusher",
projectID, regionID, registryID),
nil)
req.Header.Set("Authorization", "APIKey "+apiKey)
client.Do(req)
req, _ = http.NewRequest("DELETE",
fmt.Sprintf("https://api.gcore.com/cloud/v1/registries/%s/%s/%d",
projectID, regionID, registryID),
nil)
req.Header.Set("Authorization", "APIKey "+apiKey)
client.Do(req)
```
```bash theme={null}
# Delete container
curl -s -X DELETE \
"https://api.gcore.com/cloud/v1/caas/$GCORE_CLOUD_PROJECT_ID/$GCORE_CLOUD_REGION_ID/containers/my-nginx" \
-H "Authorization: APIKey $GCORE_API_KEY"
# Poll the returned task ID until FINISHED
# Delete pull secret
curl -s -X DELETE \
"https://api.gcore.com/cloud/v1/caas/secrets/$GCORE_CLOUD_PROJECT_ID/$GCORE_CLOUD_REGION_ID/$PULL_SECRET_NAME" \
-H "Authorization: APIKey $GCORE_API_KEY"
# Delete registry user, then registry
curl -s -X DELETE \
"https://api.gcore.com/cloud/v1/registries/$GCORE_CLOUD_PROJECT_ID/$GCORE_CLOUD_REGION_ID/$REGISTRY_ID/users/pusher" \
-H "Authorization: APIKey $GCORE_API_KEY"
curl -s -X DELETE \
"https://api.gcore.com/cloud/v1/registries/$GCORE_CLOUD_PROJECT_ID/$GCORE_CLOUD_REGION_ID/$REGISTRY_ID" \
-H "Authorization: APIKey $GCORE_API_KEY"
```
