CDN reporting combines an account-level performance overview with detailed resource statistics and optional analytics reports.

​
CDN Overview

The Overview page is the default CDN landing page in the Gcore Customer Portal. It summarizes CDN performance and traffic across all resources or a selected resource for a specified period.
1

Open CDN Overview

In the Customer Portal, navigate to CDN > Overview.
2

Filter dashboard data

Select all resources or a specific CDN resource, then select a predefined or custom period.

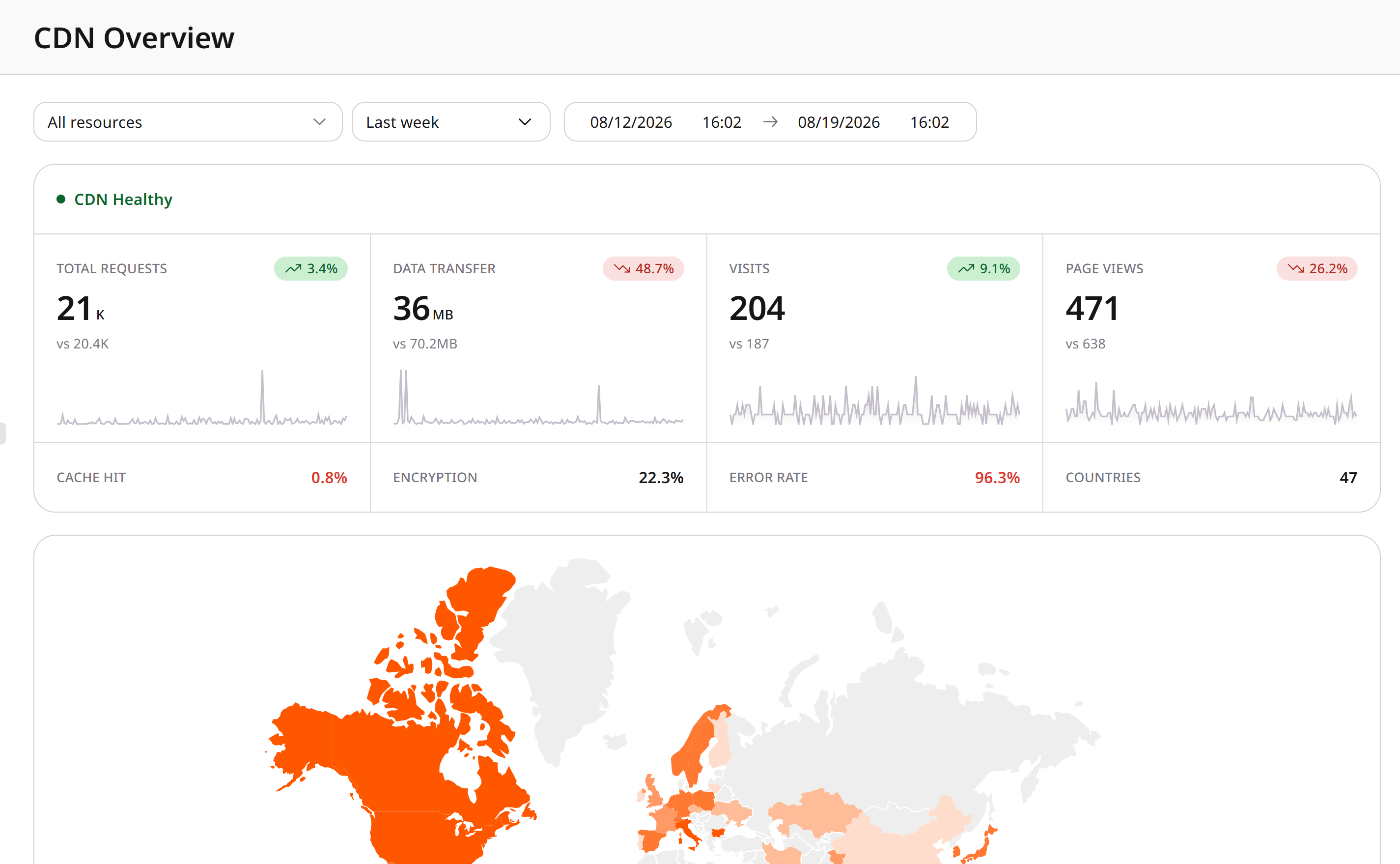

CDN Overview with resource and period filters and traffic by geography
The dashboard groups the metrics into cards that support a quick account-level assessment:
CDN Overview cards for cache performance, errors, security, and network protocols

​
Metric status rules

Health status combines the 5xx response rate with the response-time baseline:
  • Healthy — the 5xx rate is below two percent and latency is below 1.25 times the baseline
  • Degraded — the 5xx rate is between two and five percent, or latency is between 1.25 and two times the baseline
  • Unhealthy — the 5xx rate is at least five percent, or latency is at least two times the baseline
The status appears only when the selected period contains more than one thousand requests and the latest 15-minute window contains more than 20 requests. Otherwise, the dashboard displays Insufficient data. Cache hit rates above 90 percent appear in green, rates from 70 through 90 percent appear as degraded, and rates below 60 percent appear in red. Encryption rates above 90 percent appear in green, while other encryption rates use a neutral state. The 4xx rate is neutral, while the 5xx rate appears in red.

​
Statistics

The Statistics report provides traffic, bandwidth, response, cache, request, and timing metrics for selected CDN resources. Basic reports are available on all plans.
For complete data, request statistics at least two days after the required period ends. Recently completed periods may contain incomplete data.
1

Open Statistics

Navigate to the Statistics page.
Statistics report with resource, report type, and period controls
2

Select resources and report

In the CDN resource field, select one or more resources, then select a report:
  • Aggregated data — traffic volume and bandwidth for the previous three months
  • Traffic
  • Bandwidth
  • Response codes
  • Cache hit ratio
  • Requests
  • Traffic by region — traffic from servers in each region
  • Traffic by country — traffic from the five countries with the highest traffic
  • Image optimization — hourly WebP conversion count
  • Request time — time from processing the first request bytes until logging after the last response bytes are sent
  • Upstream response times — time to receive an origin response
3

Set the reporting period

Select a time interval and an auto-refresh period.
4

Review the report

The chart and summary metrics adapt to the selected report. An Image optimization report displays WebP conversions over time:
Image optimization report with WebP conversions over time
A Response codes report separates the returned HTTP status codes:
Response codes report with status code trends

​
Advanced Analytics

Advanced Analytics adds reports for requests, traffic, and unique visitors, with filters for geography, directories, browsers, devices, and operating systems. This paid option requires activation through Gcore Support or an account manager. After activation, allow approximately 24 hours for data collection. Until data is available, the page displays an example report with random data.
1

Open Advanced Analytics

Navigate to the Advanced Analytics page.
Advanced Analytics controls and report filters
2

Select report criteria

Select a CDN resource, a metric type, a reporting period, and UTC or local time.
Unique visitors are identified by the combination of IP address and user agent.
3

Filter the report

Select Geography, Directories, Browsers, Devices, or OS, then select the values to include in the chart.
The Geography filter maps traffic by country and compares selected countries in a chart. Search for a country to locate it in the list.
Geography report with map, country trends, and country list
The Directories filter compares requested paths. Search for a path to locate it in the list.
Directories report with request trends and path list
The Browsers filter compares requests or unique visitors by browser. Search for a browser to locate it in the list.
Browsers report with request trends and browser list
The Devices filter compares requests or unique visitors by device class. Search for a device to locate it in the list.
Devices report with request trends and device list
The OS filter compares requests or unique visitors by operating system. Search for an operating system to locate it in the list.
Operating system report with request trends and OS list

​
Report calculation

Gcore calculates billing and portal reports from different data sources:
  • Billing statistics use NGINX access logs because invoice calculation prioritizes accuracy over processing speed
  • Customer Portal reports use the NGINX virtual host traffic status module to provide current resource statistics
All statistics use the UTC time zone.
