Edge Proxy assignments are automated and require no IP management. Most issues appear during initial DNS migration or when the application type is misconfigured.

​
Frequently asked questions

Gcore assigns a protected IP from the Anycast pool automatically.
Click Edit protection and update Origin address. The field accepts an IPv4 address or a domain name. The assigned proxy IP does not change.
Server name, Origin address, applications, ports, and Proxy protocol can be changed from Edit protection. Port mappings can also be created through the API.
Any TCP or UDP application can be protected with a profile from Supported applications. If the exact profile is not in that set, use Generic TCP Server or General UDP Countermeasure. An incorrect profile may cause legitimate traffic to be blocked during an attack.
Edge Proxy validates TCP handshakes. Attack mitigation is always enabled, with a mitigation time of less than 1 second. Traffic is distributed across Gcore locations using Anycast, providing a combined filtering capacity of 200 Tbit/s. Edge Proxy does not use null-routing of protected IPs as an attack mitigation method.
Edge Proxy does not apply connection limits.
Multiple proxies can use the same origin address with different ports or protocols, and several proxies can share the same protected IP address.
A port mapping connects one port and protocol on the protected proxy endpoint to an origin server. One application can use several port mappings: TCP and UDP on the same port count as two. Two TCP ports on the same server count as two mappings.The billing period uses the highest number of port mappings active at any time in that period. Going from 2 mappings to 5 and back to 2 means the period is billed as 5. Deleting mappings does not reduce that maximum. Deleting the proxy does not cancel the billing commitment for the current period — cancellation takes effect from the next billing period. Attack traffic is not billed.
Edge Proxy connects to the origin over IPv4 from Gcore edge servers, which also serve Gcore CDN. Allow the addresses from https://api.gcore.com/cdn/public-ip-list (addresses) or https://api.gcore.com/cdn/public-net-list (addresses) and block all other sources.The protected IP is not a source address, so allowing it on the origin has no effect. See Restrict access to the origin.
Activation typically takes about 3 minutes after clicking Deploy.

​
DNS migration

If clients connect using a domain name, update its A record to point to the protected IP. The protected IP is an IPv4 address. Propagation depends on the DNS TTL and can take from a few minutes to 48 hours — lowering the TTL before the switch reduces downtime. Existing connections to the origin continue until clients reconnect. New connections automatically use the protected IP.

​
Troubleshooting

Verify that:
  • clients connect to the protected IP:PORT, not the origin address
  • the origin server is running and listening on the configured port
  • the proxy protocol matches the application (TCP or UDP)
  • firewall rules allow Gcore edge IPs
  • DNS resolves to the protected IP (check with dig or nslookup)
Compare latency on a direct connection vs the protected IP to isolate the source. If the origin server is far from Gcore PoPs, round-trip time increases. An incorrect application type can also cause retransmissions that appear as latency.
The most common cause is an incorrect application type — the countermeasure profile is not tuned for the application and flags legitimate packets as malicious. Reconfigure the proxy with the correct application type. If the issue persists, contact support.
Some Gcore edge servers connect to the origin and others time out. The usual cause is a firewall, a per-IP rate limit, or an auto-ban tool on the origin host or at the hosting provider that blocks the busiest Gcore source addresses. Allow all Gcore edge IPs and exclude them from connection-rate limits and auto-ban rules.
Confirm clients are connecting to the protected IP:PORT and not the origin address directly. Test from a network other than the origin server’s, as local routing may bypass the proxy.

​
Contact Gcore support

If the issue persists, reach Gcore support.

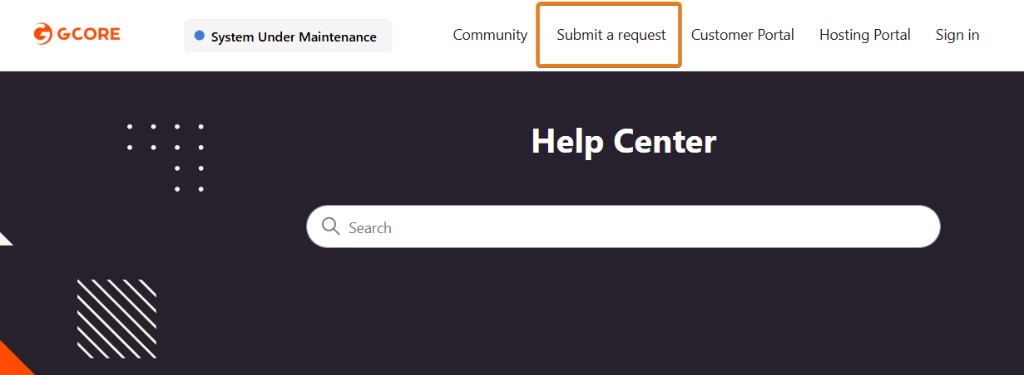

Gcore Help Center with Submit a request button highlighted in the top navigation
Use the Submit a request form and provide:
  • Account ID
  • Proxy name and protected IP
  • Description of the issue
  • Steps already taken
  • Screenshots or logs, if available
