DNS request counts can be shown as Grafana time-series panels. The Grafana plugin adds the Gcore Platform-EN data source.

​
Configure a dashboard

The panel uses the connected Gcore Platform-EN data source.

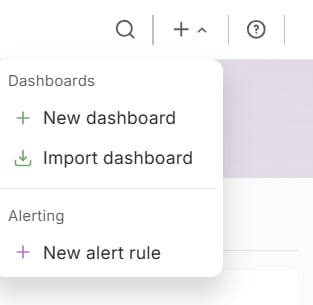

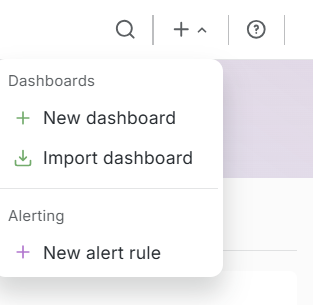

  1. In the top bar, click +, then New dashboard.
Plus menu open on New dashboard

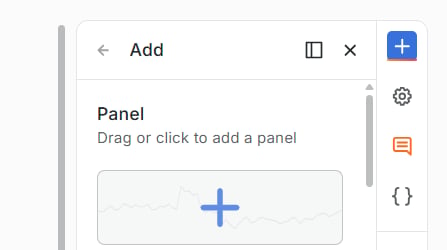

  1. The Add drawer opens on the right. Click Panel.
Add drawer with the Panel control
  1. Click Edit visualization.
  2. Under Data source, select Gcore Platform-EN.
  3. Under Edge Network, set Service to DNS.
  4. Under Query Props, set Zone, Granularity, and Record type. Legend is optional.
  5. Click Save. In Save dashboard, enter a title and click Save.

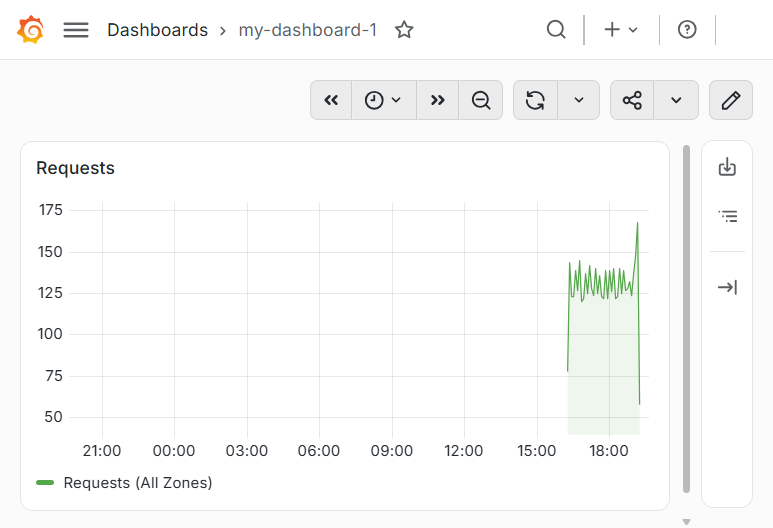

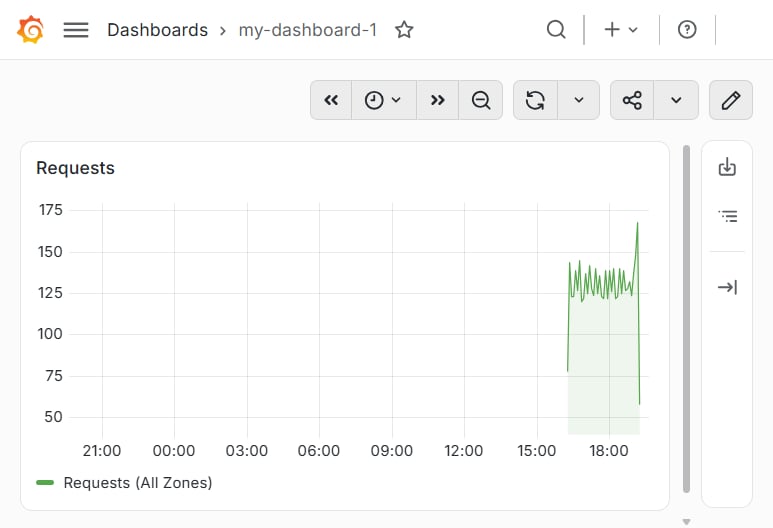

The saved dashboard shows the title and the panel.
Saved dashboard with the Requests panel

​
Query fields

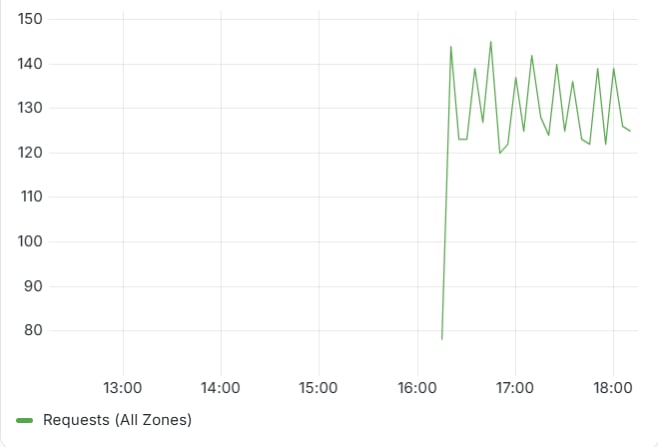

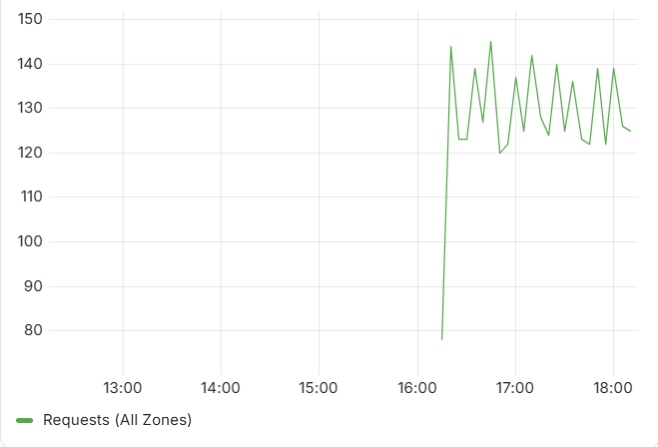

A DNS query returns one series of request counts. An alert rule on that series changes state when the request count crosses a threshold. Zone: All Zones, or one zone. All Zones returns one series of request counts with the legend Requests (All Zones), and one zone uses that zone name in the legend. Record type: ALL, A, AAAA, NS, CNAME, MX, TXT, SVCB, or HTTPS. ALL includes requests for all record types, and any other value limits the series to that type and appends the type to the legend. Granularity: 5m, 10m, 15m, 30m, 1h, 1.5h, 2h45m, or 24h. The default value is 5m, and each point is the number of requests in that interval. Legend: optional. An empty field keeps the generated series name. All Zones, granularity 5m, and record type ALL:
DNS requests for all zones
